Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off

Name: Mini Size Microwave Motion Sensor MC030S L 220240VAC IP20 For On Off
Brand: Merrytek
Price: 1 USD

China Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off wholesale

Brand Name : Merrytek

Model Number : MC030S L

Certification : TUV.CE , RED

Place of Origin : China

MOQ : 100pcs

Price : Negotiation

Payment Terms : T/T or western Union

Supply Ability : 20,000pcs per month

Delivery Time : 1, Sample and small order: Within 5 working days after receiving your payment. 2, Bulk order: 3-4 weeks after receiving deposit.

Packaging Details : Packed in bubble bag firstly, and then reinforced with carton for outer packing

Product Name : Microwave motion sensor

Rated load : 400w(Inductive) 800w(Resistive)

Operating Voltage : 220~240Vac,50HZ

Detection : Max(D×H):16m×6m

HF system : 5.8GHz ±75MHz, ISM wave band

Approval : TUV, CE & RED

Operation temperature : -20℃~60℃

Function : ON-OFF Control

IP Rating : IP20

Contact Now

Mini Size Microwave Motion Sensor MC030S L with 220-240vAC Operated For On-off Function

Description

1. Super Compact size of 69mm*35.5mm*25.5mm

2. Unique design with loop in and loop out .

3. Daylight sensor with min 2 lux optional

4. Zero-crossing point operation helps protect the sensor against in-rush current.

5. 5.8GHz high frequency microwave(C-Band license-free operation)

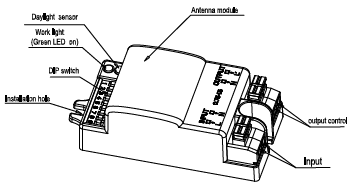

6. 4-pole press-in terminal (L, N,N,L′),easy assembly.

7. Detection area, time delay and daylight threshold can be precisely set via DIP switch.

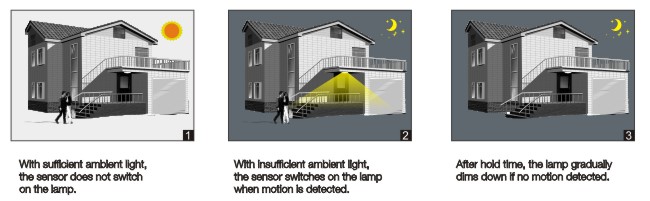

8. MC030S is an innovative motion sensor, switch on the light on detection of movement, and switch

off a hold time when there is no motion detected. As built-in daylight sensor can read brightness

value, the sensor does not switch on the light if with sufficient in natural light.

Function:

Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off

Specifications:

Mini Size Microwave Motion Sensor MC030S L 220-240VAC IP20 For On Off

Operating voltage	220-240Vac, 50Hz
Rated load	400W(inductive), 800W (resistive)
HF system	5.8GHz±75MHz, ISM wave band
Power consumption	≤0.5W
Transmitting power	<0.5mW
Detection zone Max.(D x H)	16m x 6m
Motion detection	0.5~3m/s
Detection angle	150°(wall installation) 360°(ceiling installation)
IP rating	IP20
Operation temperature	-20℃~60℃
Hold time	5s/30s/90s/3min/20min/30min
Detec Range	10%/25%/50%/75%/100%
Daylight sensor	2lux / 10lux / 25lux / 50lux / Disable
Life time	50,000 hours
Guaranty	5 years

Applications:

MC030S is special for application such as corridor, pathway
