ML30C-PV1 German terminal 1x30W PUSH / 1-10V Dimmable LED Driver 250 – 700mA 103x67x22mm for LED Panel light
Features
1, German press-in terminals at input and output side,conveninent for wire connection.

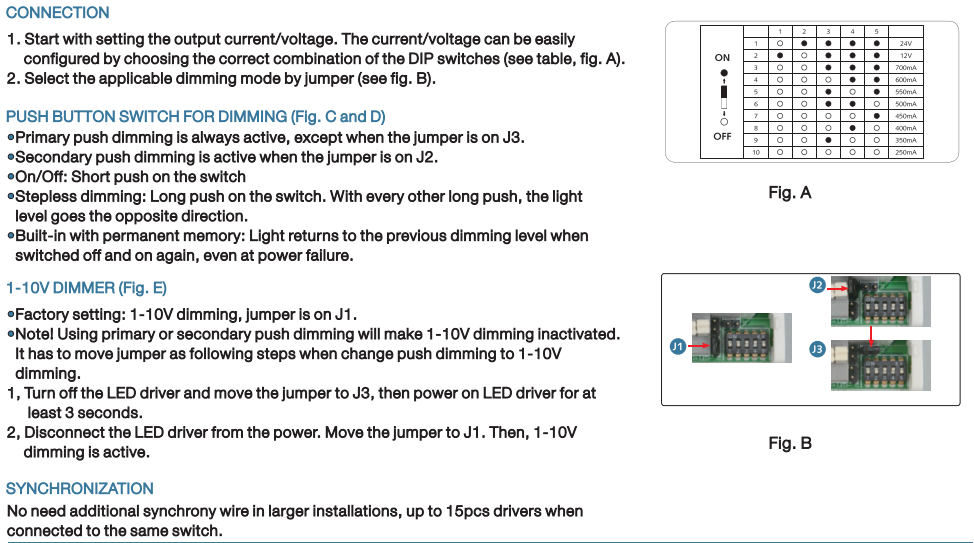

2, DIP switch design is for different current and voltage selecting, maximum current up to 700mA. Different LED light can chose the same model LED driver, save cost for purchasing and inventory management.
3, Three kinds of dimming mode: 1-10V dimming,Primary push dim,Secondary push dim.
4, Customized label support is available.
5, With top circuit design, AC-DC-DC, no flicker.
6, Jumper design for switching different dimming modes, it is very convenient to select suitable.
dimming mode as you required.
7, Synchronization: thanks to the MCU programme, up to 15pcs drivers should be controlled by the
same switch. This means there is no need for any additional synchrony wire in larger installations.
where many drivers should be controlled by one switch.
8, Memory function: The driver has built-in permanent memory against power failure. Lights can
return to previous dimming level when switch off and on again, even at mains restores.
9, Maximum length of the cable, from switch to last driver is 20m.
10, Factory setting: 100% dimming level and 250mA output.
11, Reset the LED dirver easily by a jumper.
12, Protection: Short circuit / Over voltage / Over temperature.
13, 5 years guaranty

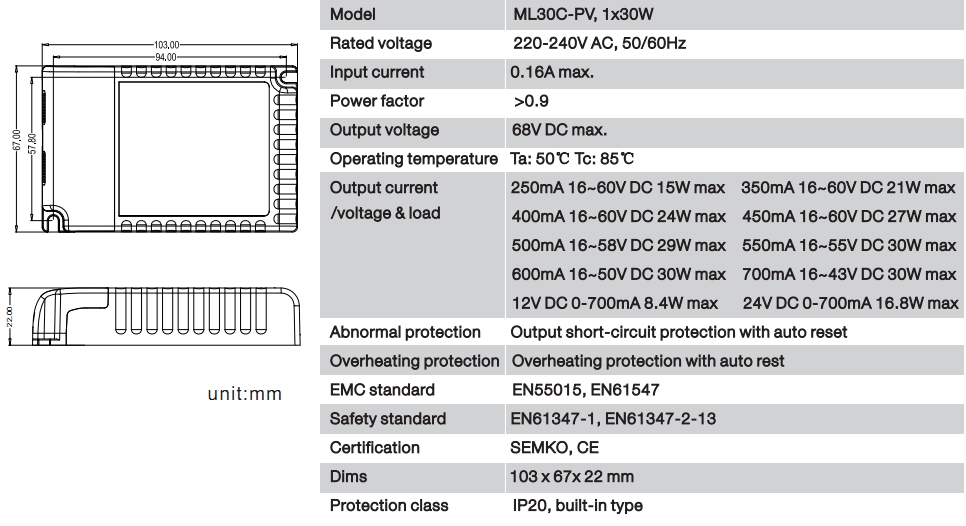

Mechanical Specification
Specifications
Applications
For LED panel light, LED down light, led strip, led tube etc…

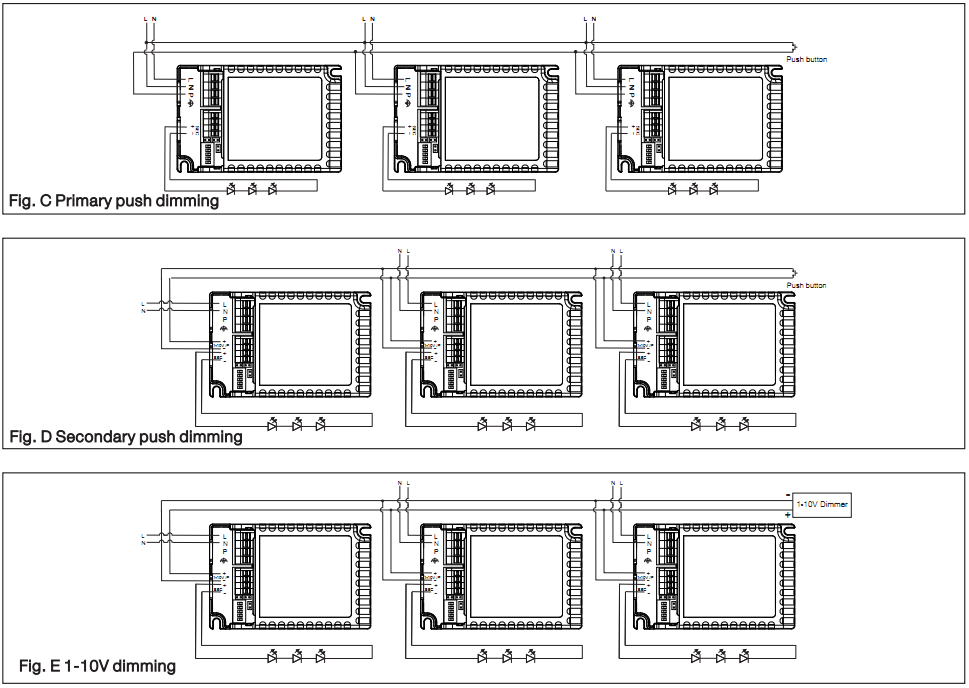

Wire diagram
